Schmidt Kupplung

Variable offset
Precise sync
Application compactness

On the right track



Keyed hubs and steel and version for flange mounting made of steel 1.0570

Tensioning hubs made of steel 1.0570 u. 1.7225


Coupling links
Steel, re-lubricatable through funnel-type grease nipples (tapered grease nipples on request); the number and link length can be adjusted to suit the specific application (torque, radial offset)

Needle bearings:
High-quality needle bushes with cages
  • High load rating
  • High radial limit loads
  • Long service life
  • With integrated sealing


Coupling bolts
Steel, corrosion-resistant, hardened, interaction matched to high-quality coupling needle bearings


Centre disc
made of steel 1.0570
Bitte aktivieren Sie Javascript.

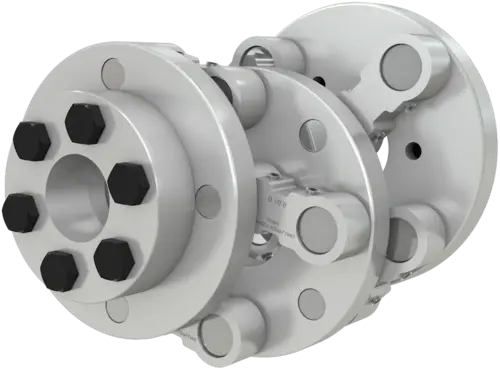

A compact coupling for extreme offset

The ultimate variable adjustment options – the Schmidt-Kupplung is an expert when it comes to extreme radial displacement. Even if different material thicknesses have to be processed in the machining process and the offset changes as a result during operation, the Schmidt-Kupplung remains at the helm and enables this to be done efficiently, with permanent angle sync and even speed at the same time.
