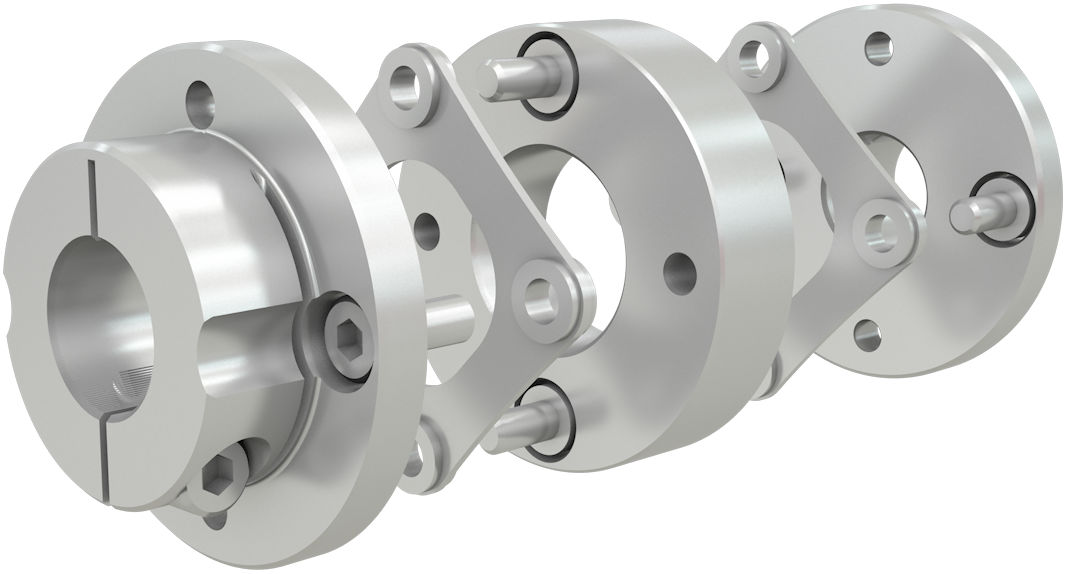

1
Clamping hubs
High-strength aluminium alloy, anodised for corrosion protection
High-strength aluminium alloy, anodised for corrosion protection
2
Disc pack
Disc pack made of flexible single discs
Disc pack made of flexible single discs
- Stainless steel 1.4301
- FEM-optimised
- Extremely high torsional stiffness
3
Spacer
High-strength aluminium alloy, anodised for corrosion protection; in the double-flex version, it ensures optimal compensation for universal displacements
High-strength aluminium alloy, anodised for corrosion protection; in the double-flex version, it ensures optimal compensation for universal displacements
4
Connecting screws
Excellent disc connection:
Connecting screws (made of alloyed heat-treated steel 1.7720, chrome-plated) in conjunction with stainless steel 1.4301 or heat-treated steel 1.1191 chrome-plated bushes provide high-torque transmission
Excellent disc connection:
Connecting screws (made of alloyed heat-treated steel 1.7720, chrome-plated) in conjunction with stainless steel 1.4301 or heat-treated steel 1.1191 chrome-plated bushes provide high-torque transmission
Bitte aktivieren Sie Javascript.

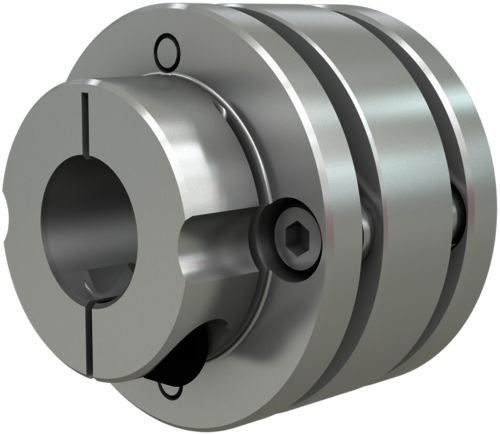

A dynamic coupling with a focus on precision
A partner for your servo motors – the Servoflex coupling. Its outstanding power density paired with minimal rotational inertia guarantees high positioning accuracy and dynamics. The FEM-optimised discs are layered to form a disc pack with high torsional stiffness. The clamping hubs are made of lightweight, high-strength aluminium. A combination that will turn your servo system into a perfect unit.
